Gathering Device

We have a wide range of fire prevention products
for fire prevention solutions

Gathering Device

GDS-16


A control board device that transmits smoke detector signals

and can send alarms.

Featured


As a device that transmits smoke detector signals through TCP/IP communication, one device can use up to 16 smoke detectors. In addition, it is a control board that can send out an alarm by itself when smoke or temperature is detected, and can self-diagnose the power and communication status without going through the Program UI.


Multiple Connections

Time Setting

High Brightness
3 Color LED
8 heat and smoke composite detectors or flame detectors can be connected per channel.(Maximum 16 can be connected)
Various ports and external I/O support
Designed to minimize the influence of external noise
Temperature detection time and flame detection delay time setting in the device itself
High-brightness 3 Color LED Indicator applied
(Green - Normal / Red - Sensing smoke or temperature / Orange - Communication error)
Real time temperature information displays

Specs


The specifications of GDS-16 with the best performance and technology.

GDS-16

Model
GDS-16
Communication Speed
115200Bps
Communication Type
Input : RS-485(Msolution's flame/smoke detector)
+ Contact Input/Output : TCP/IP
+ Contact Output
Input Voltage
24V
Current Consumption
Approx. 1A (with maximum connection)
Connector / PIN
Detector-MOLEX 5557-04/5557 Crimp
Power-MOLEX 5557-02/5557 Crimp
Contact Input Port
8EA(External equipment signal input)
Contact Output Port
24EA(1:1 matching output per port)
Detector Connection 16EA
/ Other Connection 8EA
Service Environment Temperature
32℉ ~ 122℉
Detector Connection
Up to 2 channels, 8EA per channel
Compatible with its flame/smoke detectors
Status Light
Green(Normal),
Red(Sensing smoke or temperature),
Orange(Communication error)
Additional function
Display the highest temperature of the connected sensor on FND,
Power reset via I/O board
Size
170mm × 125mm × 55mm
Material
AL 6061

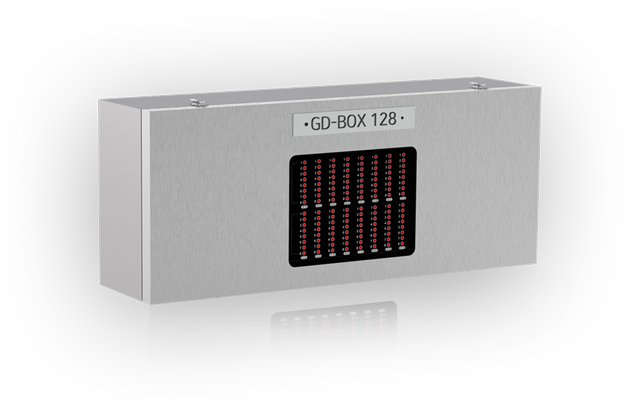

Gathering Device

GDBOX-128


A control board device that transmits smoke detector signals

and can send alarms.

Featured


As a device that transmits smoke detector signals through TCP/IP communication, one device can use up to 128 smoke detectors. In addition, it is a control board that can send out an alarm by itself when smoke or temperature is detected, and can self-diagnose the power and communication status without going through the Program UI.


Multiple Connections

Smoke/Temperature
Detection Alarm

High Brightness
2 Color LED
Up to 16 MTDM connections for each relay due to the application
of 8 relays(Maximum 128 smoke detectors can be connected)
Self-diagnosis of power and communication status through
high-brightness 2 Color LED(Green - Normal / Red - Sensing Fire)
Appliction of 80mm FAN operating according to ambient temperature
(Customization according to temperature)
Alarm output possible when smoke or temperature is detected
Control board operation and testing through dedicated portable equipment
Prevention of short circuit in the power supply through Fuse

Specs


The specifications of GDBOX-128 with the best performance and technology.

GDBOX-128

Model
GDBOX-128
Communication Speed
115200Bps
Communication Type
Input: RS-485 / Output: TCP/IP
Input Voltage
24VDC
Current Consumption
Approx. 5A (with maximum connection)
Contact Output Port
Alarm: 1EA
LED BAR: 1EA, LAN: 1EA
Service Environment Temperature
32℉ ~ 176℉
Detector Connection
Up to 128 smoke detectors available
Status Light
Green(Normal),
Red(Sensing smoke or temperature)
Size
610mm × 250mm × 150mm
Weight
Max 15kg (1Set)
Material
Steel SS400

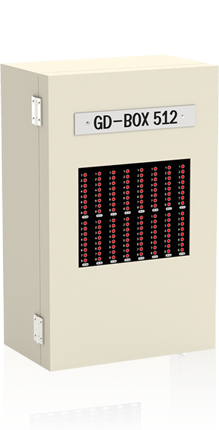

Gathering Device

GDBOX-512


A control board device that transmits smoke detector signals

and can send alarms.

Featured


As a device that transmits smoke detector signals through TCP/IP communication, one device can use up to 512 smoke detectors. In addition, it is a control board that can send out an alarm by itself when smoke or temperature is detected, and can self-diagnose the power and communication status without going through the Program UI.


Multiple Connections

Smoke/Temperature
Detection Alarm

High Brightness
2 Color LED
Up to 16 MTDM connections for each relay due to the application
of 8 relays(Maximum 512 smoke detectors can be connected)
Self-diagnosis of power and communication status through
high-brightness 2 Color LED(Green - Normal / Red - Sensing Fire)
Appliction of 80mm FAN operating according to ambient temperature
(Customization according to temperature)
Alarm output through its own speaker when temperature is detected
Control board operation and testing through dedicated portable equipment
Prevention of short circuit in the power supply through Fuse

Specs


The specifications of GDBOX-512 with the best performance and technology.

GDBOX-512

Model
GDBOX-512
Communication Speed
115200Bps
Communication Type
Input: RS-485 / Output: TCP/IP
Current Consumption
Approx. 3A (with maximum connection)
Connector / PIN
MOLEX 5557-04 / 5557 Crimp
Contact Output Port
LED BAR: 1EA
LAN: 1EA
Service Environment Temperature
32℉ ~ 176℉
Detector Connection
Up to 8 channels
10 MTDM connections per channel (Max. 80)
80 MTDM connections per channel (Max. 640)
Status Light
Green(Normal),
Red(Sensing smoke or temperature)
Additional function
Set value check through FND.
Application of 80mm FAN operating according to ambient temperature.
Size
270mm × 160mm × 420mm
Material
Steel SS400
