PRODUCTS
We are making every effort to devlop differentiated,
innovative products based on our values.
Environment Detector
We have a wide range of fire prevention products
for fire prevention solutions
Environment Detector
TS-100
A device that detects heat and smoke and alerts.
A device for early detection of fire for the purpose of fire prevention
Featured
It is a device that detects fire at an early stage sensing heat or smoke generated in case of a fire. It has a height specialized for automated warehouses and minimizes interference from other facilities. In addition it is a heat and smoke combined photoelectric detector that allows self-diagnosis of power and communication status and KFI fire rating control through the device.
Self-diagnosis
Function
Rating adjustment
Function
High Brightness
3 Color LED
(Smoke - Photoelectric Type /Temperature - Fixed Type (H/W), Differential Type(S/W))
(Green - Normal / Red - Sensing smoke or temperature / Orange - Communication error)
Specs
The specifications of TS-100 with the best performance and technology.
TS-100
Model
TS-100
Certification
CE
Type
Smoke - photoelectric type
Temperature - fixed type(H/W),
differential type(S/W)
Temperature - fixed type(H/W),
differential type(S/W)
Sensitivity Test
KFI
Detection Grade
KFI Grades 1~2
(Grades adjustable)
(Grades adjustable)
Sensitivity Level
3%/m ~ 10%/m
Connector / PIN
SMH250-04 / YST025
Communication Type
RS-485
Input Voltage
12~24 VDC
Current Consumption
23mA
Service Environment Temperature
32℉ ~ 176℉
Fire Alarm Temperature
Settable within 86℉ ~ 185℉
Temperature Display Range and Temperature Deviation
32℉ ~ 210.2℉±35.6℉
(+5% deviation within 32~176℉ range)
(+5% deviation within 32~176℉ range)
Status Light
Green(Normal),
Red(Sensing smoke or temperature),
Orange(Communication error)
Red(Sensing smoke or temperature),
Orange(Communication error)
Compatibility
Available thorugh M Solution’s
Control Board
Control Board
Size
95mm (∅) × 25mm (H)
Weight
76g
Material
Combination of flame retardant
PC and ABS
PC and ABS
Environment Detector
SS-500
A device that detects heat and smoke and alerts.
A device for early detection of fire for the purpose of fire prevention
Featured
It is a device that detects fire at an early stage sensing heat or smoke generated in case of a fire. It has a height specialized for automated warehouses and minimizes interference from other facilities. In addition it is a heat and smoke combined photoelectric detector that allows self-diagnosis of power and communication status and KFI fire rating control through the device.
Slim Thickness
Rating adjustment
Function
High Brightness
2 Color LED
(Smoke - Photoelectric Type /Temperature - Fixed Type)
(Green - Normal / Red - Sensing smoke or temperature)
Specs
The specifications of SS-500 with the best performance and technology.
SS-500
Model
SS-500
Certification
CE
Type
Smoke - photoelectric type
Temperature - fixed type(H/W)
Temperature - fixed type(H/W)
Sensitivity Test
KFI
Detection Grade
KFI Grades 1~2
(Grades adjustable)
(Grades adjustable)
Sensitivity Level
3%/m ~ 10%/m
Connector / PIN
SMH250-03 / YST025
Communication Type
Contact Type
Input Voltage
12~24 VDC
Current Consumption
23mA
Service Environment Temperature
32℉ ~ 176℉
Fire Alarm Temperature
Settable within 86℉ ~ 185℉
Temperature Display Range and Temperature Deviation
32℉ ~ 210.2℉±35.6℉
(+5% deviation within 32~176℉ range)
(+5% deviation within 32~176℉ range)
Status Light
Green(Normal),
Red(Sensing smoke or temperature)
Red(Sensing smoke or temperature)
Compatibility
MITSUBISHI PLC(NPN)
SIEMENS PLC(PNP)
SIEMENS PLC(PNP)
Size
95mm (∅) × 25mm (H)
Weight
76g
Material
Combination of flame retardant
PC and ABS
PC and ABS
Environment Detector

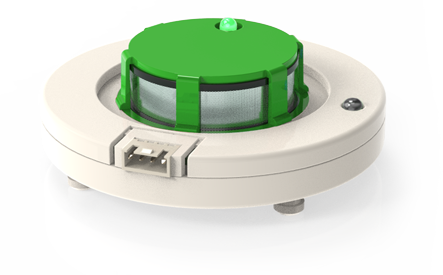

TP-100
A device that detects heat and smoke and alerts.
A device for early detection of fire for the purpose of fire prevention
Featured
It is a device that detects fire at an early stage sensing heat or smoke generated in case of a fire. It has a height specialized for automated warehouses and minimizes interference from other facilities. In addition it is a heat and smoke combined photoelectric detector that allows self-diagnosis of power and communication status and KFI fire rating control through the device.
Self-diagnosis
Function
Rating adjustment
Function
High Brightness
3 Color LED
(Smoke - Photoelectric Type /Temperature - Fixed Type(H/W))
Self-diagnosis of power and communication status
Resolution improvement (Data cycle 2Sec)
Specs
The specifications of TP-100 with the best performance and technology.
TP-100
Model
TP-100
Certification
CE
Type
Smoke - photoelectric type
Temperature - fixed type(H/W),
differential type(S/W)
Temperature - fixed type(H/W),
differential type(S/W)
Sensitivity Test
KFI
Detection Grade
KFI Grades 1~2
(Grades adjustable)
(Grades adjustable)
Sensitivity Level
3%/m ~ 10%/m
Connector / PIN
SMH250-04 / YST025
Communication Type
RS-485
Input Voltage
12~24 VDC
Current Consumption
23mA
Service Environment Temperature
32℉ ~ 176℉
Fire Alarm Temperature
Settable within 86℉ ~ 185℉
Temperature Display Range and Temperature Deviation
32℉ ~ 210.2℉±32.72℉
Status Light
Green(Normal),
Red(Sensing smoke or temperature),
Orange(Communication error)
Red(Sensing smoke or temperature),
Orange(Communication error)
Compatibility
Available thorugh M Solution’s
Control Board
Control Board
Size
95mm (∅) × 25mm (H)
Weight
76g
Material
Combination of flame retardant
PC and ABS
PC and ABS
Environment Detector

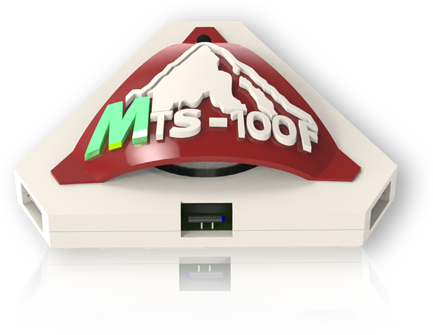

MTS-100F
A device that detects heat and smoke and alerts.
A device for early detection of fire for the purpose of fire prevention
* Patent No.10-1968745
Featured
It is a device that detects fire at an early stage sensing heat or smoke generated in case of a fire. It has a height specialized for automated warehouses and minimizes interference from other facilities. In addition it is a heat and smoke combined photoelectric detector that allows self-diagnosis of power and communication status and KFI fire rating control through the device.
Self-diagnosis
Function
Rating adjustment
Function
High Brightness
3 Color LED
(Smoke - Photoelectric Type /Temperature - Fixed Type (H/W), Differential Type(S/W))
(Green - Normal / Red - Sensing smoke or temperature / Orange - Communication error)
Specs
The specifications of MTS-100F with the best performance and technology.
MTS-100F
Model
MTS-100F
Certification
CE
Type
Smoke - photoelectric type
Temperature - fixed type(H/W),
differential type(S/W)
Temperature - fixed type(H/W),
differential type(S/W)
Sensitivity Test
KFI
Detection Grade
KFI Grades 1~2
(Grades adjustable)
(Grades adjustable)
Sensitivity Level
3%/m ~ 10%/m
Connector / PIN
SMH250-04 / YST025
Communication Type
RS-485
Input Voltage
12~24 VDC
Current Consumption
23mA
Service Environment Temperature
32℉ ~ 176℉
Fire Alarm Temperature
Settable within 86℉ ~ 185℉
Temperature Display Range and Temperature Deviation
32℉ ~ 210.2℉±39.2℉
Status Light
Green(Normal),
Red(Sensing smoke or temperature),
Orange(Communication error)
Red(Sensing smoke or temperature),
Orange(Communication error)
Compatibility
Available thorugh M Solution’s
Control Board
Control Board
Size
95mm × 81mm × 25mm
Weight
76g
Material
Combination of flame retardant
PC and ABS
PC and ABS
Patent

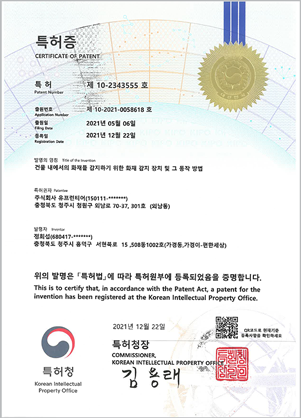

Patent No.10-2343555
Patent No.30-2021-0019363 bottom
